LXK300M Without Linkage Off-road Dirt Bike Motorcycle - (Orange)
- L x W x H: 2170X830X1285mm
- Wheel Base: 1465mm
- Vehicle Weight: 104.5kg
- Seat Hight: 960mm
- Maximum Power : 42.6KW/8500rpm
- Maximum Torque : 52NM/7000rpm
- Performance exhaust
- Alloy subframe
- Lithium battery
- O-ring chain
- Pre-mix
- New body work and air box for better air flow
- Race Carb and CDI
- Waffle style air filter
- 2.5 gallon fuel tank

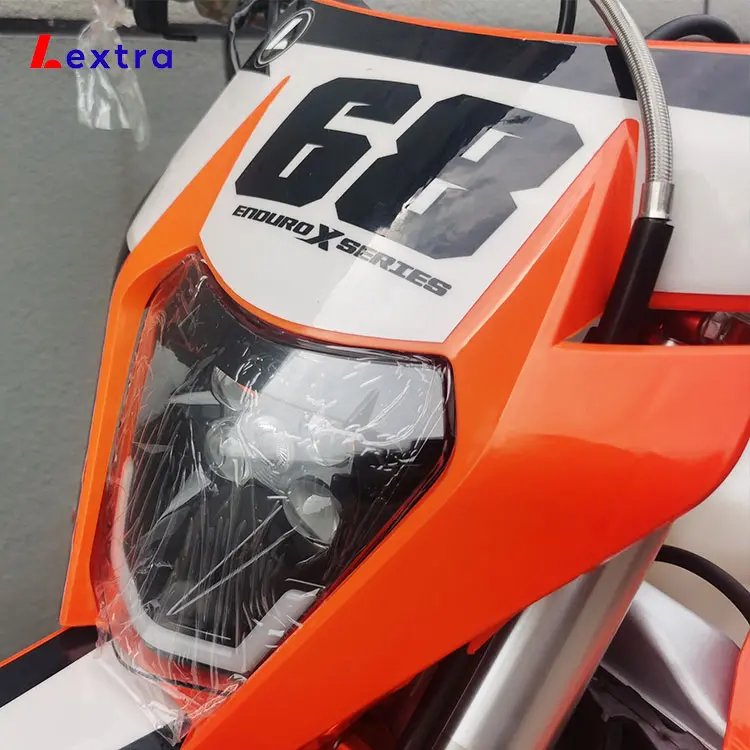

- New LED headlight and mounting
- 300cc two stoke engine w/electric start
- Six speed wide ratio transmission
- CNC triple clamps & footpegs
- Trip / Speedometer
- Light weight central backbone chromo "A" box frame
- Frame guards & 3m Heavy duty graphics
Always enjoy riding, enjoy life.
Simple and reliable performance are the name of the game when it comes to the LXK300M dirt bike.
The engine has been developed completely within factory and has been subject to racing and a high huge amount of testing.
The engine features a counter balancer as well as a mechanical power valve.
Alloy lightweight barrel with coated bore. 6-speed gearbox with wet multi plate clutch.
Efficient electric start as well as kick start back up as stock. Carburetor induction.
New front cartridge forks are fully adjustable and were developed by SZC.
They have been extensively tested and rival the very best available forks in the World.
The rear suspension is linkless as well as fully adjustable. Billet top and bottom yokes as well as wheel hubs.
Strong rims and thick stainless steel spokes. Very powerful brakes . Strong alloy sump shield and an automatic fan kit as stock.
A ribbed exhaust for strength and a beautifully welded lightweight alloy silencer.
FEATURING
-
-
-
-
-
-
- High quality carburetor : Equipped with NIBBI carburetor, super power, optimal match
- 32 adjustable sections for downward pressure rebound damping
- Stainless steel spokes, 7075 rims, YUANXING customized front tires 90/100-21 and rear tires 140/80-18.
- CNC front and rear wheel hubs, guarantee of the performance and quality.
- High-quality imported front and rear disc brake systems, combining riders and vehicle in one for easy handle.
- 7 series aluminum alloy large chain disc
- thicken stainless steel spokes
- Aluminum Alloy Sprocket,Imported Japan DID Chain. Combination of toughness and rigidity, quality assurance.
- Integrated cast rear flat fork, lightweight overall, giving the entire vehicle more power
- The Stainless Steel for front muffler, aluminum alloy for rear muffler silencers are matched with professional scenes,ensuring a more smooth power output and handling without reducing the sharpness under the premise of excellent noise reduction
- Handlebar equipped with CNC hoop to prevent handle grip rubber from falling off during riding;
- The handle grip rubber is made of environment friendly material with diamond particles pattern.
- Aluminum alloy oiler seat.
- Safety riding without worries.
- Non-slip cushion: complex road conditions, move forward without fear of restlessness.
- Extra LED headlight, turn lights and tail light for option, can be chosed as per actual demand, beautiful and practical with long service life.
- Extra speedo can be chosed as per actual demand.
- 9L fuel tank
-
-
-
-
-
▼
1) LXK300M model 2 stroke dirt bike is one of the best sale of Lextra off-road motorcycles.
It is equipped with a high power customized engine, FX300, which has 293.2cm³ displacement.
Max. power 42.6KW/8500rpm. Max. 52NM/7000rpm. It will be your best choice for climbing mountains.

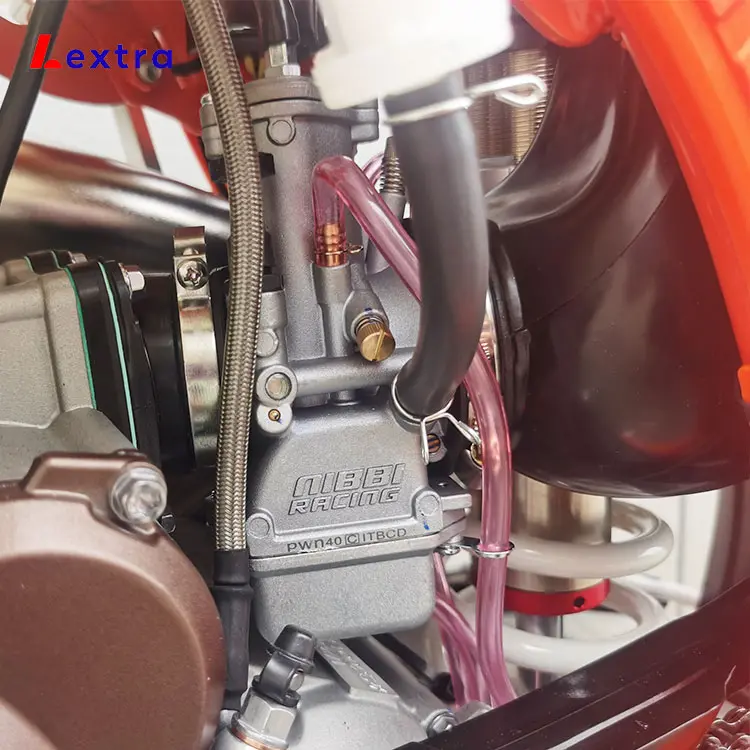

2) It is equipped with a high quality NIBBI brand carburetor, super power output.
3) LXK300M also can be started by both electric or kick. And it uses high strength gearshift with 6 gears.
3) LXK300M also can be started by both electric or kick. And it uses high strength gearshift with 6 gears.
And the front and rear sections of stainless steel die-cast welded silencers are matched with professional scenes, ensuring a more
smooth power output and handling without reducing the sharpness under the premise of excellent noise reduction.
smooth power output and handling without reducing the sharpness under the premise of excellent noise reduction.
 |  |  |

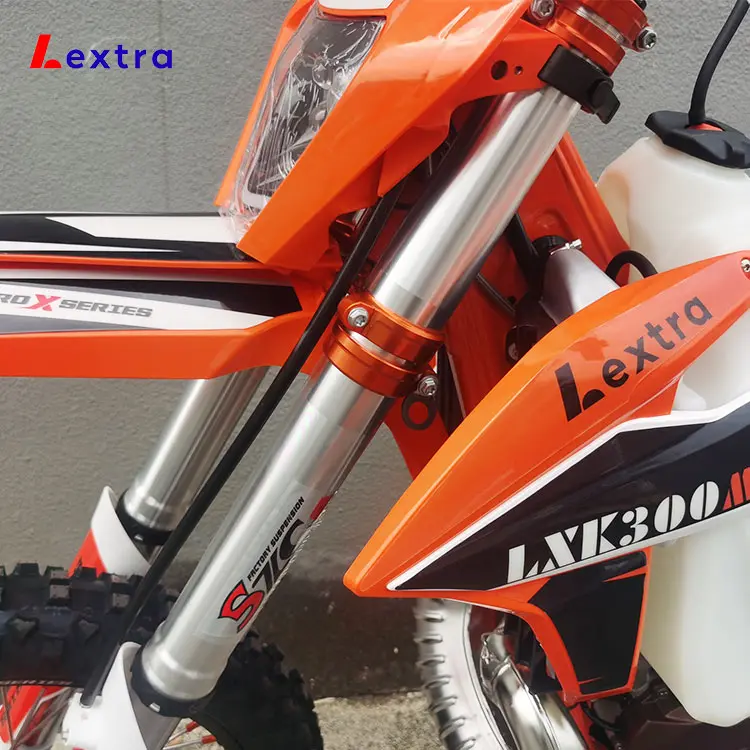

4) Lextra LXK300M dirt bike also adopts the high strength SZC brand front suspension.

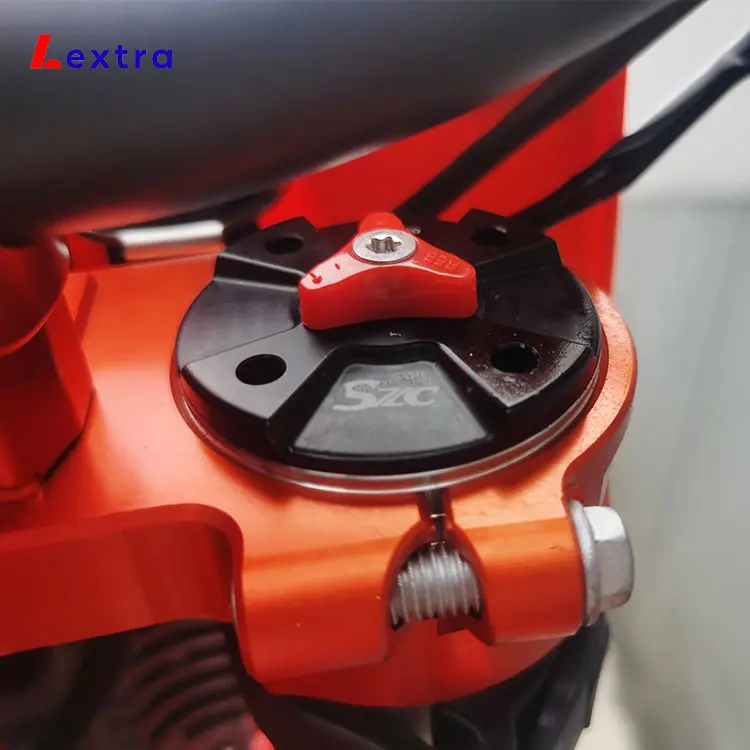

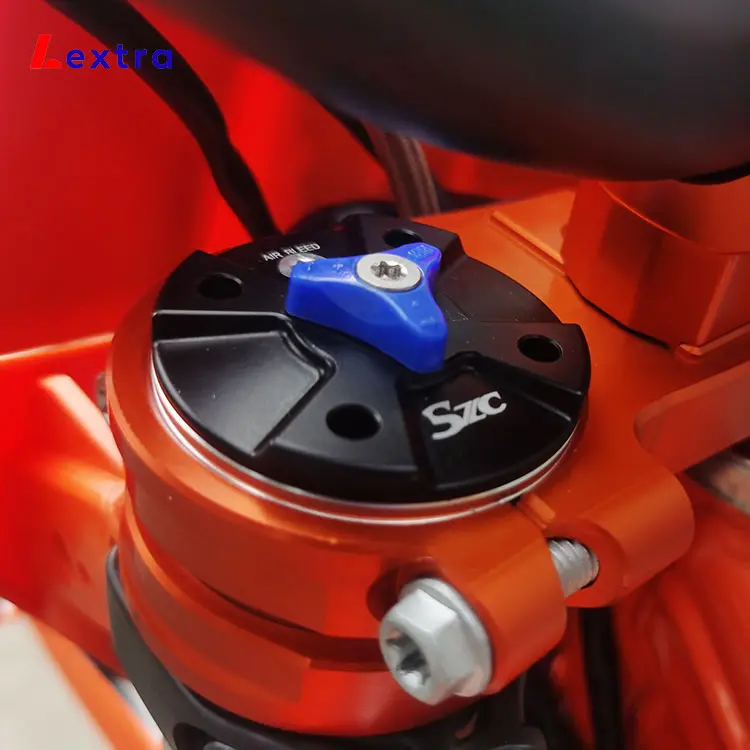

It is inverted Single Cavity type, compress resistance is adjustable on left shock absorber, and resilience resistance is adjustable on right shock absorber.
5) The Rear Shock Absorber is Single cylinder oil pressure built-in airbag central shock absorption, return resistance and preload can be adjusted up and down.
6) For the front and rear wheels of LXK300M model off-road dirt bike, it adopts high strength thicken stainless steel spokes,
7075 rims and specific customized tires from famous Yuanxing brand. Front tires 90/100-21 and rear tires 140/80-18.
7) It also uses CNC front and rear wheel hubs, guarantee of the performance and quality.
8) And there is Aluminum Alloy Sprocket and Imported Japan DID Chain. Combination of toughness and rigidity, quality assurance.
8) And there is Aluminum Alloy Sprocket and Imported Japan DID Chain. Combination of toughness and rigidity, quality assurance.

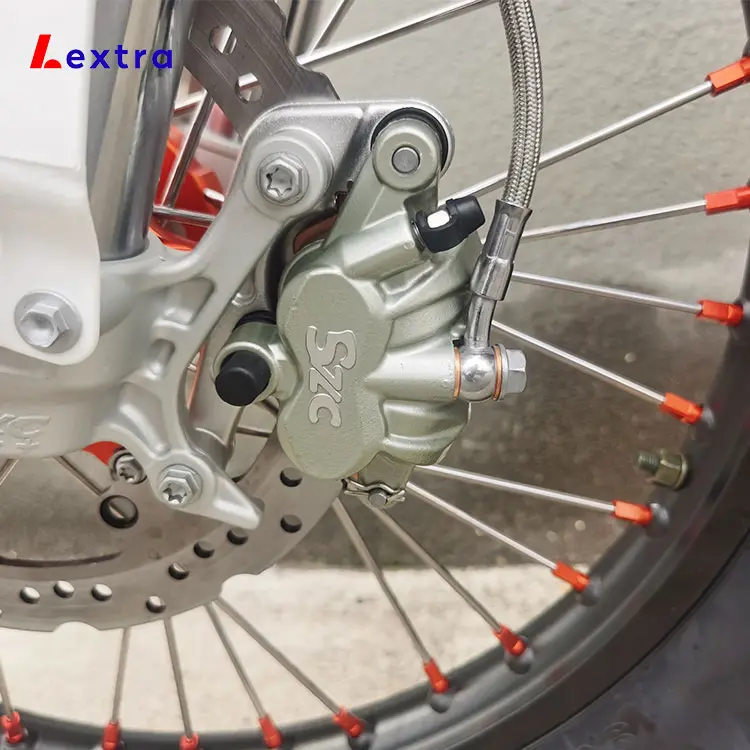

9) For the braking system, LXK300M adopts high-quality imported front and rear disc brake systems, combining riders and vehicle in one for easy handle.
Front disc with dual-piston caliper, high-pressure aviation oil pipe. Rear disc with single-piston caliper, high-pressure aviation oil pipe.
10) This dirt bike has already be equipped with big 9L fuel tank for ensuring long endurance.
And the customers also can choose to add extra digital speedometer, LED headlight, turn lights and tail light for the LXK300M off-road dirt bike as per
the actual demand. And Number Plate can be offered together.
the actual demand. And Number Plate can be offered together.
| LXK300M Without Linkage Specification | |
| Engine | |
| Engine Model | FX300 |
| Engine Type | Vertical, Single Cylinder, 2 Stroke, Water cooled, Spark Type,Two Stroke Reed Valve |
| Displacement | 293.2cm³ |
| Bore and Stroke | 72x72mm |
| Fuel Delivery | NIBBI 40 |
| Maximum Power | 42.6KW/8500rpm |
| Maximum Torque | 52NM/7000rpm |
| Gearshift Method | Internatioal 6-speed Gearshift. |
| Starting Method | Electric/Kick Start |
| Lubrication method (combustion part) | Premix |
| Lubrication method (transmission part) | Pressure splash |
| Clutch | Wet Multi-Disc Hydraulic Clutch |
| Primary gear ratio | 2.81 |
| Gear ratio | i1=2.29 i2=1.63 i3=1.25 i4=1.05 i5=0.88 i6=0.77 |
| Iginition Method | CDI |
| Exhaust valve control method | mechanical |
| Frame | |
| L x W x H | 2170X830X1285mm |
| Wheel Base | 1465mm |
| Vehicle Weight | 104.5kg |
| Seat Hight | 960mm |
| Minimum Ground Clearance | 370mm |
| Brake type | Front and rear disc brakes |
| Fuel Tank Volume | 9L |
| Handle Bar | 7 series Aluminum alloy |
| Battery Model | 12V/4Ah or optional lithium battery |
| Transmission Ratio | Aluminum Alloy Sprocket, Imported Japan DID Chain |
| Frame | Chrome-molybdenum steel |
| Front Shock Absorber | Inverted Single Cavity type, compress resistance is adjustable on left shock absorber, and resilience resistance is adjustable on right shock absorber |
| Rear Shock Absorber | Single cylinder oil pressure built-in airbag central shock absorption, return resistance and preload can be adjusted up and down, direct connection |
| Rear Fork | Integrally formed aluminum alloy rear fork |
| Steering System | 6 Series Aluminum Alloy CNC Streering Stem |
| Front Wheel/Rear Wheel | Stainless steel spokes, 7075 rims, CST front tires 80/100-21, CST rear tires 110/90-18. CNC Adjusting Nuts, CNC Hub |
| Cooling System | Water Tank + Electric Fan |
| Brake System | Front disc with dual-piston caliper, high-pressure aviation oil pipe Rear disc with single-piston caliper, high-pressure aviation oil pipe |
| Muffler | Stainless Steel for front part, aluminum alloy for rear part |
| Side Stand | 7 series Aluminum Alloy automatic return |
| Seat | Non-slip Cushion |
| Gearshift Pedal | CNC |
| All axle | CNC |
