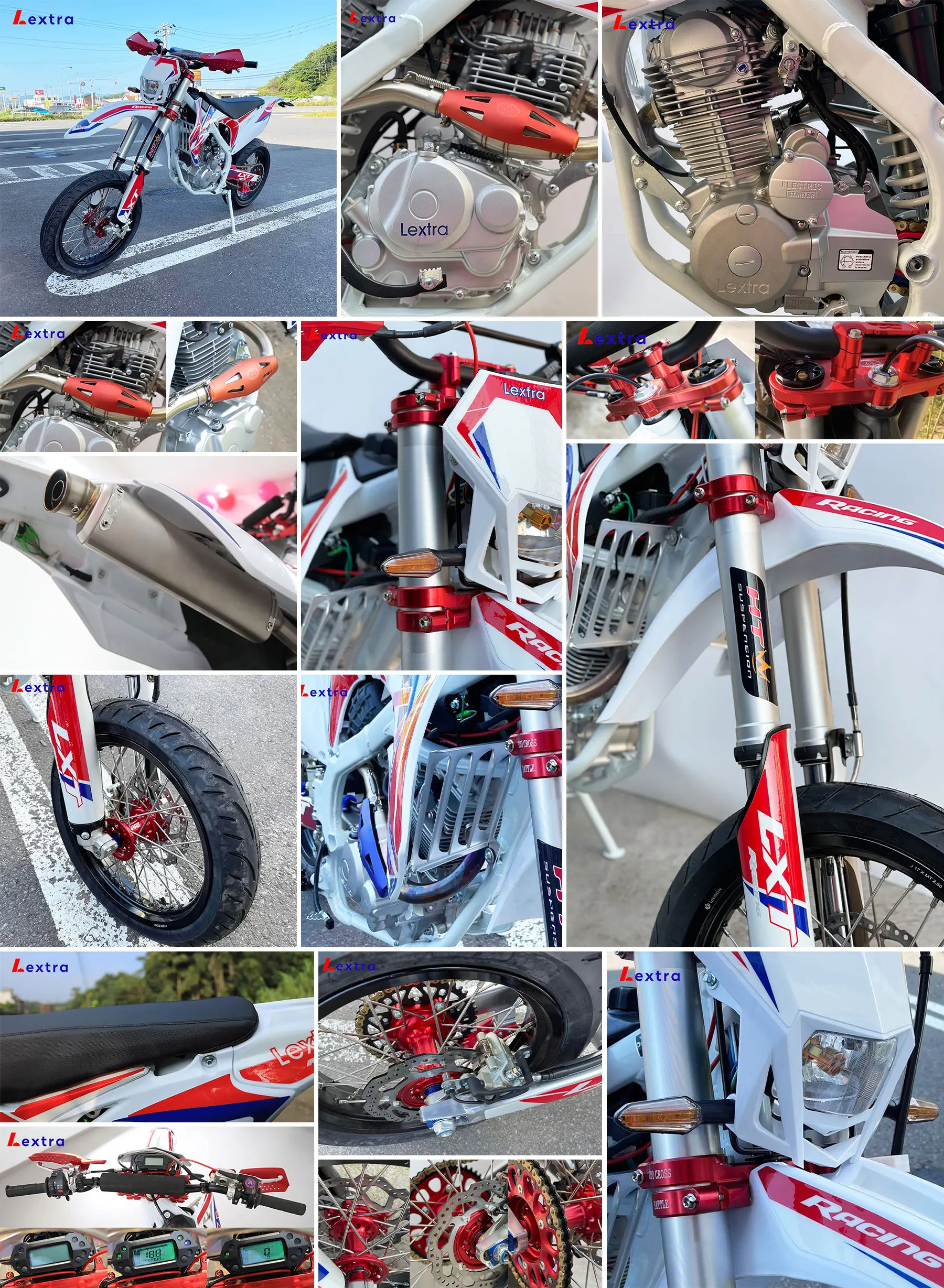

LXT250F Supermotard
- L x W x H: 2160X810X1260mm
- Wheel Base: 1455mm
- Vehicle Weight: 106kg
- Seat Hight: 900mm
- Minimum Ground Clearance: 300mm
- Fuel Tank Volume: 6.5L
- Handle Bar: 6061 Al-alloy Reducer Handle Bar
- Battery Model: 12V/6A Nanometer Colloid Battery
| LXT250F Supermotard version Specification | |
| Engine | |
| Engine Model | Zongshen CB250 |
| Engine Type | Single Cylinder, 4 Stroke, , OHC, Air Cooling |
| Displacement | 249.9cm³ |
| Bore and Stroke | 72 x 61.4mm |
| Compression Ratio | 9.25:1 |
| Fuel Delivery | PE28 Carburetor |
| Maximum Power | 12.8KW/8500rpm |
| Maximum Torque | 18NM/6000rpm |
| Gearshift Method | Internatioal 5-speed Gearshift. |
| Starting Method | Electric/Kick Start |
| Iginition Method | AC-CDI |
| Frame | |
| L x W x H | 2160X810X1260mm |
| Wheel Base | 1455mm |
| Vehicle Weight | 106kg |
| Seat Hight | 900mm |
| Minimum Ground Clearance | 300mm |
| Fuel Tank Volume | 6.5L |
| Handle Bar | 6061 Al-alloy Reducer Handle Bar |
| Battery Model | 12V/6A Nanometer Colloid Battery |
| Transmission Ratio | 520/13T-47T, 520H Chain |
| Frame | Double Beam Cradle Frame With Imported Hascrome, Al-Alloy Sub-frame |
| Front Shock Absorber | Taiwan HTW Inverted Double Adjustable Shock Absorber, Stroke:300mm，Length: 930mm, Inner Diameter: Ø48mm |
| Rear Shock Absorber | Taiwan HTW Double Adjustable Shock Absorber with Forging Cylinder. Stroke: 100mm, Length:485mm |
| Rear Fork | Al-Alloy Rear Fork, CNC Chain Adjuster |
| Steering System | Casting Aluminum Alloy Streering Stem, Taper Bearing by Special Steel |
| Front Wheel/Rear Wheel | Tubeless Fr Tyre 110/70-17；Tubeless Rr Tyre 150/70-17, 7 Series Widen Al-alloy Rim, Manganese Steel Spoke, Die-casting Hub, CNC Al-alloy Bush, Hollow Special Steel Fr/Rr Axle |
| Brake System | Front Disc Brake, Dual-piston Calipers. Rear Disc Brake, Single-piston Caliper. Forging Al-Alloy Brake Arm |
| Lighting Systerm | Headlight with Led bulb and Cover, Led turn light, Led taillight and its bracket, Digital speedometer |
